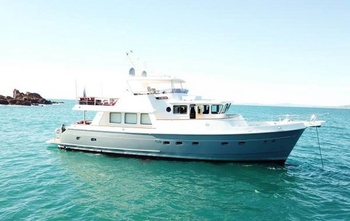

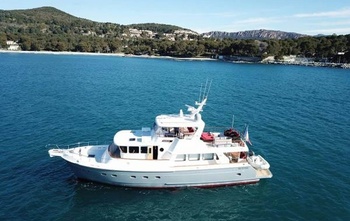

Bandido 66 (2009)

Description

Design Features

Colour casing

Solid laminated hull

Hull, decks and superstructure are made under SCRIMPTM license to provide greater strength and less weight

Solid cast hull with longitudinal stringers

High temperature foamed superstructure

Stringers woven with high density foam

Deck and superstructure interwoven with foam by infusion for strength

All internal structural members properly connected to the hull

Infusion strengthened bulkhead structure for increased safety

Antifouling coating with anti-fouling additives

General description of hull and decks

Main deck - reinforced composite polymer

Bulwark with frosted lights

Fiberglass railing on foredeck

Teak plugs from bow to stern

Two stainless steel rails and anchor chain stoppers

Two Maxwell VWC3500C vertical hydraulic anchor winches

Two stainless steel anchors (80 kg)

Two high strength 250.5 foot anchor chains

Large stainless steel pads for forward mast protection

Two Maxwell VC2200 electric winches on both sides

Heavy-duty #316 stainless steel, 2" stainless steel handrails with supports

Stainless steel flag pole

Crane storage (for 6 pieces) on foredeck

Portuguese bridge at lower helm station

One round emergency exit in center of Portuguese Bridge with gangway to VIP cabin

Heavy duty #316 stainless steel fixing duckboards and roller outlet

Frameless recessed portholes of tinted tempered glass

Two brushed stainless steel doors with bronze tinted glass for cabin entry, port side

One sealed port-side deck door to sickbay, opens towards bow

Two centered main deck louvres on both sides

Round portholes with stainless steel plugs, 4 in crew quarters and sickbay, 4 in master stateroom

Oval portholes with stainless steel end caps, 5 in VIP cabin and guest cabin

Two special large oval portholes in master cabin

Built-in shower with hot and cold water

Steps on stainless steel swim platform

Rear deck seating with acrylic cup holders

Two fiberglass dining tables with folding part in center of rear deck

Rubberized stainless steel handrails around the hull on the Trend deck

Stainless steel handrails on both sides of stairs on rear deck

Two zinc anodes on transom

Sunbrella or vinyl curtains (standard)

New transom built under seats on rear deck

Two stairs from swim platform to rear deck on either side

Comfortable steps from aft deck to flybridge with handrails

Fuel and water tank necks securely housed in recesses

Two vertical lashing ducks on swim platform on both sides

24 V halogen spotlights on radar arch

Beseznoni hydraulic gangway 3,5 m on port side

Tender garage (Williams 325 type) aft which has:

Hydraulic lowering door

Electric winch for tender and guides

one fan

One socket

Lights

Emergency exit to Infirmary

Fresh water wash down

Place for fixing the ladder from the swim platform

Smoke detector

Flybridge:

Teak cover

Automatic retractable awning for hardtop hatch

Tinted windscreen in stainless steel frame

Stainless steel grab handles

Toolbar with stainless steel cup holders on both sides

One steering seat (second seat optional)

Convenient L-shaped bar on port side including:

fiberglass countertop

barbecue

automatic power cut-off device for safe use of the barbecue

ice maker U-LINE BI-95 under the work surface

storage boxes under the barbecue

stainless steel grab rails around the bar

stainless steel sink

serving surface

three bar stools

under worktop fridge (ENGEL SR65E)

storage space under worktop

Stairs to helm station with sliding door

Double fiberglass bench with seat cushions on starboard side next to helmsman's seat, with cup holders

U-shaped sofa (with storage underneath) with auto height adjustable fibreglass table

Reflective lighting system under the seats in fibreglass

Panel lined with teak slats for under-seat storage

Stairs from aft deck to flybridge with stainless steel handrails

Halogen lights in steps

Drainage holes with steel inserts

GRP radar arch with two speakers under hardtop

Signal horn

Two sections of storage boxes with pads on top of each side of flybridge

Flag pole

Hydraulic crane (optional)

Steering and drive system

Two MAN D 2876 LE 402/560 hp diesel engines with ZF 285A transmissions

Two RACOR 75/1000MA fuel separators

RACOR 500MA double fuel filter for generators

Stainless steel AQUA TECH #17 HS shafts

Bow and stern hydraulic thrusters ABT Hyd, 38 hp with control panels

ABT Hyd 250/9.0 hydraulic sway stabilisation system

High performance five blade propellers

Main and auxiliary shaft supports in bronze

Two A-frame shaft supports

Shaft and rudder blade oil seals with specialized leakage protection

REXROTH engine control telegraph (Flybridge, Main Post, Third helm-less aft mooring post)

Exhaust system with CENTEK mufflers

Steering system of two posts MARLO

Handwheels of both control stations stainless steel

Rudder emergency rudder control in tiller compartment of stainless steel

Rudder blades of stainless steel with zinc anodes

Stainless steel windscreen wipers with washer system

Variable speed windscreen wipers for each wiper

HYNAUTIC hydraulic transom plates with plate position indication panel

Engine room (MO) and equipment

Stairs from aft hatch in ME with teak steps

Floorboards MO with rubber anti-slip coating accurately laid on all area

Sound and heat insulation materials of foam and leadfill combination

Stainless steel guards on main engines

MO lighting with DC fluorescent lamps and ceiling downlights

Two high power MO fans with fire dampers

Aluminium intake air moisture filter on flybridge

Stainless steel exhaust shrouds for main engines

One Fireboy or Seafire fire extinguisher

Engine cushion load spreaders connected to longitudinal stiffeners

Oil pressure and coolant temperature alarm system

Heavy duty DC water pump and spare AC pump

Fresh water replenishment hose for main engines and generators

Aluminum-plastic fuel tanks with electrical level sensors

Pumping oil replenishment system for Main Engines and Generators

Typhoon air compressor

Locksmith shop behind garage with access from MO

Rubberized deck in workshop

DC socket in workshop

Watermaker AQM 900GPD

Electrical equipment

220V from generator and shore supply

Two shore power sockets aft starboard 50A each

Switch for direct current

Color-coded cables for identification

Two generators ONAN MDKBR 17-5 KW e-Qd working in mains with acoustic jackets

Fiberglass soundproofed generator exhausts

Mastervolt 50A battery charger for starter batteries

Mastervolt 25A battery charger for starter batteries of generators

Mastervolt 75A battery charger for service batteries of electrical consumers

Two converters 24/12V 20A-DC-DC converters

Battery switches

4 Mastervolt MVG 12V/200 AH gel start batteries

4 Mastervolt MVG 12V/200 AH gel service batteries

4 Mastervolt MVG 12V / 120 AH gel storage batteries

Main AC/DC distribution board with fuses

Junction box in each cabin

24V distribution board with fuses

AC switchboard located in MO

Circuit breakers VIMAR

Grounding of all AC sockets

Diffused lighting under panels in saloon, galley, control room and cabins

ACET Intercom system in Salon, Control Desk, all cabins, MO and Flybridge

Outdoor outlet for shoreline telephone and television

Electrolysis system

DC power system for lighting

Air Chill Air Conditioning System (Salon, all cabins. 8 in total)

Emergency Fire Alarm System. (each cabin, salon, MO)

Sewage and dirty water system

Dirty water tank 680 litre with macerator

Dirty Water Tank Y-Clap Switch for Evacuation ashore

dirty water tank level sensor

Pumps for emptying pallets

Marine grade pipe work for potable water system

Two 20 gallon boilers. Torrid 20

Circulation Pump for Boilers

Fresh Water Tank 2 tonnes

RULE bilge pumps

Master draining pump

Color coding of all piping system

Bilge ventilation

TRIDENT type elevating protection for Main Engine Exhaust against outside water

Optional transfer fuel pump

Interior

Standard layout with 3 cabins with three bathrooms in the forward area and one crew cabin with bathroom in the aft area

Glossy finish wood used in furniture and fittings

Carpets in three cabins

Flooring: Teak and holly in saloon, kitchen and wheelhouse

Teak and holly on stairs from salon downstairs

Black plastic coating in crew cabin, sickbay and stairs from sickbay to deck

High quality door locks

Halogen lights in ceiling

Audio-video system with speakers in staterooms

High density foam mattresses with designer duvet covers

Indirect lighting system under sofas, beds and curtain alcoves

All staircases with security lighting

Fabric upholstered headboards

Wall cabinets in every cabin

Custom made alcove in wall for TV

Removable vinyl ceiling panels on ceilings throughout the yacht

Special shutters for air conditioning

Designer curtains and bedspreads in each cabin

Blinds

Space for portable fire extinguishers

Master Stateroom

King-size bed with carved wood headboard and storage drawers beneath

Two bedside cabinets at each side

Two reading lamps

Two full size hanging cabinets with automatic interior lighting

TV lowered from the ceiling

Storage cupboard on port side

Soundproofing

Two large oval portholes with stainless steel plugs

Additional 4 round openable portholes with stainless steel end caps

Storm curtains on all circular portholes

VIP cabin

Queen-size bed with carved wood headboard and storage drawers beneath

Two bedside cabinets at each side

Two reading lamps

Two full size hanging cabinets with automatic interior lighting

Storage cupboard on either side

Oval portholes with stainless steel plugs (2 pieces)

Curtains for portholes

TV niche in the wall

Guest cabin

Two single beds with wooden headboard, two storage drawers

One full-length hanging closet with automatic interior lighting

Two reading lamps

Oval portholes with stainless steel plugs (2 pcs)

Curtains for portholes

TV corner

Crew cabin

Two single beds with wooden headboard, two storage drawers

One full-length hanging closet with automatic interior lighting

Two reading lamps

Oval portholes with stainless steel plugs (2 pcs)

Curtains for portholes

TV corner

Battalion

Formica walls and ceiling

Stairs to the deck

Formica storage box

Black plastic flooring

Sealed door to engine room

Garage door

2 portholes with stainless steel plugs

Storm curtains for portholes

Washing machine with drying function Siemens

Salon

Flat screen TV 50

Leather furniture

U-shaped sofa with fabric upholstery on port side

Table with one armchair to port side next to door

Closets on starboard side

Walled air shaft

One coffee table with frosted glass top

TV height adjustment mechanisms

Places for audio-video system on starboard

Glass cabinet with acrylic shelves and halogen illumination on starboard side

Teak and holly on the floor. Formica - furniture, walls and ceiling

Kitchen / Wheelhouse

Storage space according to layout

Large stainless steel sink

Siemens refrigerator

Siemens coffee machine

Cooking hob Siemens

Microwave oven Siemens under the hob

Dishwasher Siemens

Hood over hob

Lockers

Worktop - corian

Wooden Flooring in Kitchen

Three bar stools next to breakfast table opposite U-shaped sofa

Central staircase to lower deck

Stairs to starboard wheelhouse

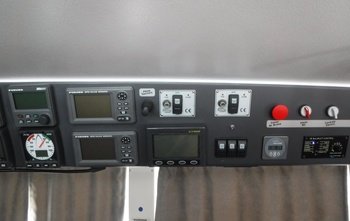

Black leather trimmed control panel in wheelhouse

Tracking system with red indicator lights in wheelhouse

Two RECARO steering chairs

Captain's station opposite port helmsman, with one chair

L-shaped sofa upholstered in fabric or leather

Wooden sliding table with stainless steel base

One sliding wooden door at the entrance to the kitchen

Four sealed doors on side decks: kitchen, foyer, two from wheelhouse

Bathrooms (3):

Corian side and work surfaces

Corian® flooring

Underfloor heating

Glass shower door

Unobtrusive GRP finishes in all showers

Grohe mixer taps and showerheads

Standard towel racks, rings, cup and brush holders

Circular portholes with stainless steel plugs (two in Owner's Suite, one in Crew Suite)

Power socket with protection

TECMA toilets

Backlit extractor hood

Built-in porcelain sink with fiberglass cabinet

Mirror above sink

Navigation equipment

Integrated control console for both stations

Full set of controls for DG operation

Instrumentation of all equipment

RITCHE magnetic compass on both control stations

Running Lights in special niches

Leveling system in tanks

Navigation equipment

Ship alarm system
