Monachus Issa 45 (2024)

Описание

New vessel - delivery 2023

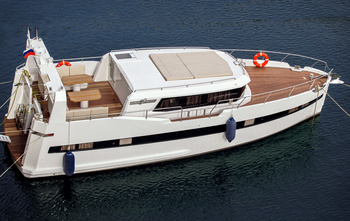

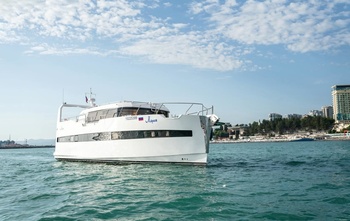

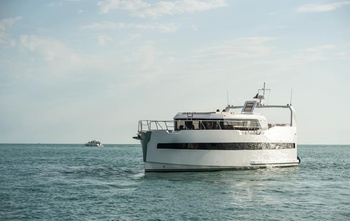

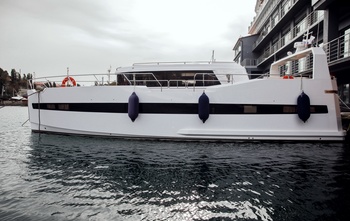

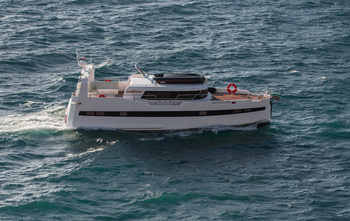

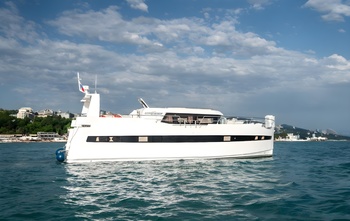

Issa 45 - a modern and elegant lobster-style boat with smooth lines and with a spacious external cockpit.

BASIC DATA;

LOA: 14,40 m / 47 ft

Hull length: 13.15 m / 43 ft

Width: 4.20 m / 14 ft

Draught: 1,08 m / 3,5 ft

Displacement (full tanks): 14.4 t

Fuel capacity 1.500l, fresh water capacity 700l, black and gray water capacity 400l

STANDARD EQUIPMENT;

• ENGINES;
• PREPARATION AND DELIVERY;
• DECK;
• INTERIOR;
• NAVIGATION;
• COMFORT;
• SAFETY & DOCKING

• 2 x 400 HP FPT/N60, 28 kts

• Hull color, deck and superstructur, white-gelcoat
• Epoxy primer two coats under waterline
• Antivegetativ, first coat hard, second coat selfpolish
• Commissioning (up to 20 engine hours)
• Builders certificate and EC certificate class 'A/B'

• Stainless steel railing
• Anodized anchor DELTA 20kg and 75m anchor chain 10mm
• Anchor windlass 1500W with controller on spiral cable in anchor storage, chain expiration counter on controler
• Two bow cleats, two midd boat cleats, two stern cleats
• Pair of mooring rope leads at the bow, fixed on wooden curb
• Teek wood, complet deck
• Deck curb, massive Iroko wood
• Two handrails for each side walk

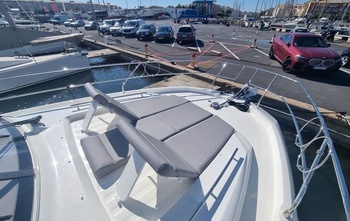

• Sunbathing mattresses on the bow
• Aft Cockpit bench seat with cushions
• Fixed cockpit table, teak
• Two lightweight armchairs cockpit seats (foldable, canvas/aluminum)
• Stainless steel construction with awning
• Protective awning for windshields
• Outdoor hot/cold water shower
• Stainless steel door with Monachus sign for exit to platform
• Bathing stairs
• Bathing platform, 125cm lenght
• External hydraulic gangway 200kg load capacity
• Pair of underwater reflectors in two colors

• Entrance door to the saloon with a folding window between the kitchen and the external cockpit
• Two electric sliding hatch above the wheelhouse 70 x 60cm
• Steering wheelhouse with captain seat adjustable height and depth
• Sliding side window to the captain's seat
• Upholstery, modern style canavas
• TV with digital antenna in salon
• Fusion marine Radio/USB/MP with 2 speakers in salon + 2 speakers for outdoor cockpit
• Galey with sink, hot/cold water, cooking top, pantry
• Fridge 180L, 40L freezer
• Connector for 12V USB chargers, 2 in each cabin, 3 in salon
• 230V (115 US) socket, in the salon, in the kitchen, in each cabin
• Fresh water flushing toilet bowls, electric-vacuum-silent

• Garmin GPSMAP 16'' Plotter/Sonder on the control panel
• Radar Garmin, display along with plotter (E.1.)
• Garmin VHF station
• Electronic engines controls
• Engine performance data on a separate display-Smartcraft
• Level indicators for all tanks
• Autopilot Garmin
• Hydraulic flaps for slope trimming
• Anchor chain expiration counter on control panel
• Bow thruster
• Stern thruster
• Horn with control at wheelhouse
• Windscreen wipers with water syringes
• Electrical switchboard DC12V/AC 230V with all device controls and fuses

• AC 24.000BTU splitted in all cabins and salon
• Generator 230V-5,5 kW
• Charger 230V/12V 60ApH / inverter 12V/230-1000W and baterry status indicator
• Water heater 230V – 35l capacity
• 230V socket for cable connection to shore
• Shore connection cable 30m

• Electric bilge pumps with indicators on command console, 3 pcs.
• Manual bilge pump
• Fire-fighting self-activating ampoules for the engine room
• Carbon monoxide detector in each separate room
• Galvanic insulator for protection against poor grounding on the shore
• Mooring ropes 4 pcs. in length 15mt.
• Fenders 6 pcs.
• Boat hook

ADDITIONAL EQUIPMENT ON REQUEST
