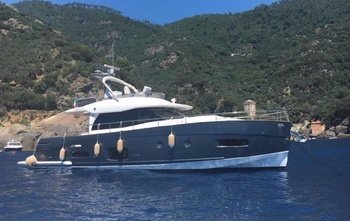

Magellano 53 exterior

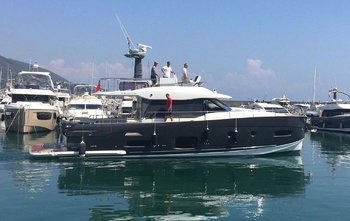

Magellano 53 exterior

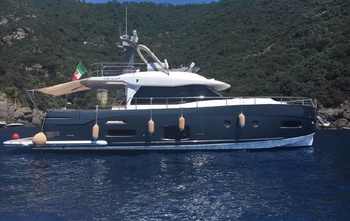

Magellano 53 exterior

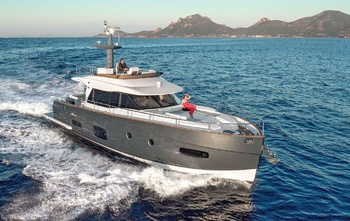

Magellano 53 exterior

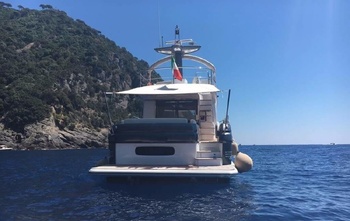

Magellano 53 exterior

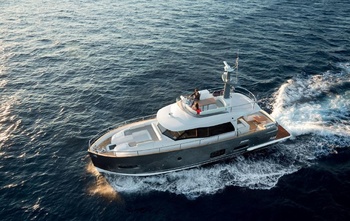

Magellano 53 exterior

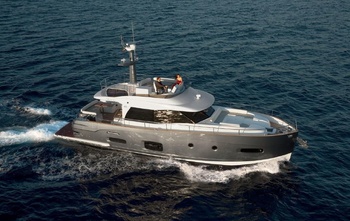

Magellano 53 exterior
Magellano 53 exterior
Magellano 53 exterior
Magellano 53 exterior
Magellano 53 interior
Magellano 53 interior
Magellano 53 interior
Magellano 53 interior
Magellano 53 interior
Magellano 53 interior
Magellano 53 interior
Magellano 53 interior
Magellano 53 interior
Magellano 53 interior
Magellano 53 interior
Magellano 53 interior
Magellano 53 layouts
Magellano 53 layouts
Magellano 53 layouts

Motor Yacht Model

Builder

Azimut

Flag of Italy

Range

Magellano

7

12

1

Status

Discontinued

Years

2013-2025

This page describes the yacht model. It is not a listing for a specific boat for sale. Learn how itBoat works and how model pages differ from listings.
Azimut Magellano 53: Model Info

Azimut Magellano 53: Model Info

The Azimut Magellano 53, like the second generation of the entire Magellano range, has been designed with the feedback of customers who have been operating these yachts since their launch. In particular, some interior layouts have been changed and, in general, more useful space has been created.
In addition, many potential clients favoured an additional captain's cabin on a 17 metre yacht, which was also considered in Magellano 53. The cockpit is now larger, with a bar and a large sofa with table. The swim platform, whose mechanism can lift a tender weighing up to 400 kg, has also been enlarged.
Like the other models in the range, the Magellano 53 has a specific «hybrid» hull shape designed by British naval architect Bill Dixon, thanks to which Magellano yachts sail well in both displacement and hydroplaning modes. The superstructure boasts circular glazing, so that the helm of Magellano 53 will have an excellent view and guests will be able to enjoy the sea views to the maximum.
The flybridge is not very large, but in addition to the second control station, there is a cozy sofa corner with a table. There are also very large sofa areas on the bow deck and in the cockpit.
The master suite is equipped in the middle of the hull and has a bathroom and large portholes with an opening part. The VIP cabin occupies the forward section of the living deck and is slightly smaller than the owner's suite.
Magellano 53 is positioned as a long range yacht, but her autonomy is naturally inversely proportional to her speed - for example, her range will be 500 miles at 10 knots or only 370 at 20 knots.




Azimut Magellano 53 Specifications

Azimut Magellano 53 Specifications

Discover the specifications of the Magellano 53, a 16.9m semi-displacement yacht from Azimut. Includes technical details, engine options, tank capacities, and key onboard features.

Length
16.90 m55' 6"
Beam
4.70 m15' 6"
Draft
1.44 m4' 9"

Main dimensions

Length overall (LOA), m
16.9
Beam, m
4.7
Draft, m
1.44

Engines and performance

Engine options
2 x 500 mHP (368 kW) Cummins QSB 8.3 -
Cruising speed, kn
16
Max speed, kn
22
Fuel capacity, l
3,200

Passenger capacity

Max people onboard
12
Guest cabins
5
Guests capacity
7
Bathrooms
2
Crew
1

Tonnage

Displacement, t
30.8 (half load)
Fresh water capacity, l
700

Classification

CE Design Category
A - Ocean
Types
Semi-Displacement Yacht
Hull material
Fiberglass / GRP

Manufacturer info

Builder
Azimut Yachts
Country
Italy
Model
Magellano 53
Range
Magellano
Status
Discontinued
Production years
2013-2025
Azimut Magellano 53 Layout

Azimut Magellano 53 Layout

View the Azimut Magellano 53 layout, including full deck plans, guest and crew capacity, and available cabin configurations.

Azimut Magellano 53 Videos

Watch 2 videos about the Azimut Magellano 53

Azimut Magellano 53 - Video Tour

Azimut Magellano 53 - Video Tour

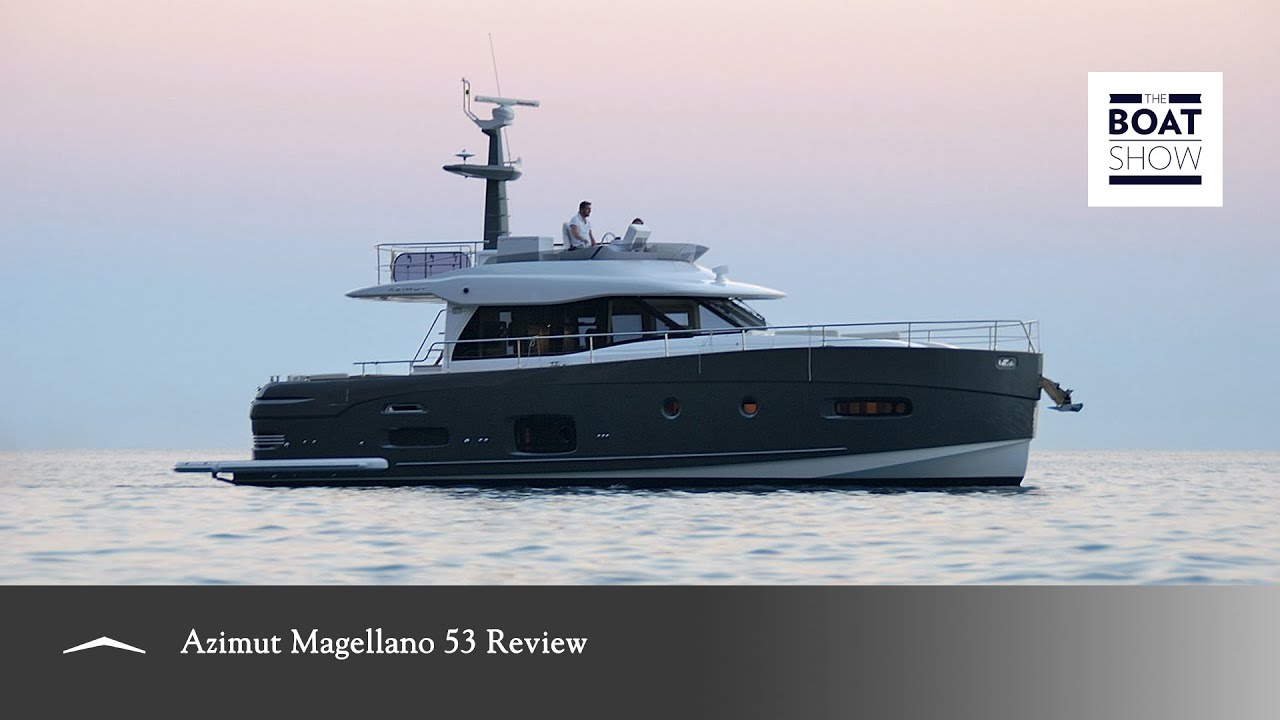

Azimut Magellano 53 - Review
